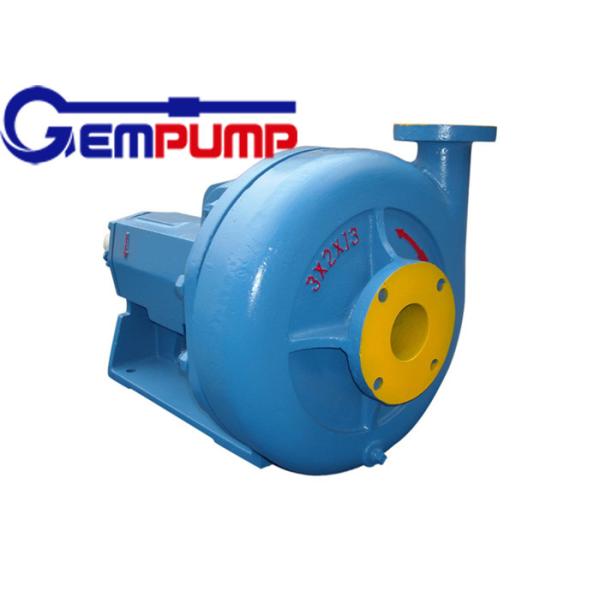

Sugar processing Mission Centrifugal Pump Replaced centrifugal sand pump

Brand Name : Gempump

Model Number : 3x2x13

Certification : ISO9001

Place of Origin : Shijiazhuang,China

MOQ : 1 unit

Price : USD 1000 unit

Supply Ability : 100 unit per month

Packaging Details : wooden cases

Applications : Glass fibers, Sugar processing, Cement, Mine de-watering, Lime slurries

Rotation : 800~3500rpm

Motor Power : 7.5~90KW

Hz : 50 or 60

Color : Blue

Weight : by required

Contact Now

Sugar processing Mission Centrifugal Pump Replaced centrifugal sand pump

Item QTY.
of
one pump		 Part No. Stock No. Description
1* 1 See below 　 Casing
1A 1 10399-46-1 648403012 Gasket,casing
1B 12 3932-61 648402014 Nut,casing
1C 12 3862-76 648401115 Stud,casing
1D 1 8505-4-1 86485503 Plug,Casing Drain
1E 1 8505-4-1 646400507 Plug,flush line
2* 1 See below 　 Impeller
2A 1 19110-72 648405082 Seal,impeller
2B 1 　 7300239 Washer,impeller
2C 1 　 7415648 Bolt,impeler lock
3*# 1 22223-01-30 641116157 Stuffing box,mech.seal
3*& 1 20614-01-30 643365042 Stuffing box,packed
3A 2 3861-117 648401016 Bolt,stuffing box
3B& 1 19368-01 601499403 Grease fitting
4 1 20622A 641103338 Gland assy,packing
5A# 1 22451-1 648414308 Seal,mechanical
5A~ 3 25014-04M-B 661007005 Packing, Shaft - M.S. Backup
6 2 B3701A 601102494 Bolt assy,gland
7 1 20612-02-33 646490557 Shaft
7A 1 20943-04A 641103437 Sleeve,shaft
7B 1 4371-5-21 601212392 Key,shaft
7C 1 23444-01-72 648415156 Seal,shaft sleeve
8 1 22210-1A 641116108 Deflector assembly
9 1 20618-12-1 644302499 Frame,grease lubricated
9C 1 8505-04-01 601474737 Plug, Frame Drain
9D 1 8267-01 601473689 Breather
9G 3 2538-1H 　 Bolt,casing jack
10A 1 20626A 641103361 Cover,inboard bearing
10B 1 20625 648408706 Gasket,I.B.Brg.Cover
10C 1 20619-01 648408300 Oil seal, I.B.Brg.Cover
10D 2 3861-1 601407505 Bolt, I.B.Brg.Cover
10E 2 3932-2 601408560 Nut, I.B.Brg.Cover
10H 1 19368-01 648411908 Grease fitting
11 1 20615-1 648408102 Bearing,inboard
12 1 20624-01-01 644308504 Housing,O.B.bearing
12A 1 7496-253 648402295 Seal, O.B.Brg.housing
12B 4 3861-138 648401057 Bolts, O.B.Brg.housing
12C 2 3932-62 658404702 Nut, O.B.Brg.
　 housing jam
13 1 20617A 641103296 Cover,O.B.Bearing
13A 1 19368-01 661010020 Grease zerk, O.B.Brg.Cover
13B 1 7496-26 72200017 O-ring, O.B.Brg.Cover
13C 1 20619-02 648408359 Oil seal, O.B.Brg.Cover
13D 2 3861-139 648401081 Bolt, O.B.Brg.Cover
14 2 20616-1 648408201 S Bearing, O.B.
14A 1 6124-4 648402105 Lockwasher,O.B.Bearing
14B 1 6123-4 648402055 Locknut, O.B.Bearing
Casings
1* 1 19203-01-30A 641101753 Casing,3×2×13
1* 1 19205-01-30A 641101902 Casing,4×3×13
1* 1 19222-01-30A 641102058 Casing,5×4×14
1* 1 19122-01-30A 641101456 Casing,6×5×11
1* 1 19123-01-30A 641101605 Casing, 6×5×14
1* 1 19763-01-30A 641102157 Casing, 8×6×11
1* 1 19117-01-30A 641101308 Casing,8×6×14
1* 1 20937-01-30A 641102322 Casing,10×8×14
Impellers
2* 1 19204-XX-30 641215603 Impeller,3×2×13
2* 1 19206-XX-30 641217005 Impeller,4×3×13
2* 1 19224-XX-30 641217831 Impeller,5×4×14
2* 1 19121-XX-30 641211602 Impeller,6×5×11
2* 1 19121-XX-30 641212105 Impeller, 6×5×14
2* 1 19121-XX-30 641211602 Impeller, 8×6×11
2* 1 19116-XX-30 641209903 Impeller,8×6×14
2* 1 21867-XX-30 641221007 Impeller,10×8×14

Note:

  1. XX－Impeller code－Firsr X equals diameter of impeller in inches minus 4.Therefore 10″=6,9″=5 etc…14″ use lettet A;
  2. Second X equals frational data in1/8′s.Therefore 1/8″=1, 1/4″=2 ,etc…Thus a 10.5″ impeller is coded as 64, 12″ impeller is coded as 80, 13.25″ impeller is coded as 92 etc…
  3. YYY－the metric diameter of impeller,therefore 12″ is coede as 305mm,11″ is coded as 280mm

The Mission MAGNUM I has been engineered for the toughest jobs in drilling,production, well-servicing, and industrial applications.The revolutionary design of the MAGNUM I provides supreme-duty performance in all types of fluid pumping operations. Although it offers greater capacity and higher heads, the MAGNUM I remains the competitive pump of choice for aggressive applications.

The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional

Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23 to 14x12x22. Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800rpm, 1000rpm, 1150rpm,1450rpm, 1750rpm to 3500rpm at 50Hz or 60Hz.
