GF stainless steel sanitary Single Screw Pump for Brewed / unbleached beer buds
GF stainless steel sanitary single screw pump
GF stainless steel sanitary single-screw pump food pump: (with stainless steel and non-toxic rubber material) Main application: wine, undiluted beer buds, hops, milk powder, wheat milk, starch, tomato sauce, soy sauce, Mash, honey, chocolate mix, milk, cream, cheese and meat, etc., can also be used in the pharmaceutical industry and toothpaste industry and so on.
GF type stainless steel sanitary single screw pump applications
In general, a single screw pump can be used as a general purpose pump. Running speed can be high or low, the pump rated pressure can be increased with the pump series increased, for each additional level, the pressure increased 0.6MPa, so the use of a very wide range: environmental protection, shipbuilding industry, petroleum industry, Japan, the brewing industry, construction industry, mining industry, chemical industry, printing, paper industry.
Performance parameters
| Model | Speed
r/min | Flow
m3/h | Working Pressure
Mpa | Motor
kw | Head
m | Inlet
mm | Outlet
mm |
| G20-1 | 960 | 0.8 | 0.6 | 0.75 | 60 | Dy25 | Dy25 |
| G25-1 | 960 | 2 | 0.6 | 1.5 | 60 | Dy32 | Dy25 |
| G25-2 | 960 | 2 | 1.2 | 2.2 | 120 | Dy32 | Dy25 |
| G30-1 | 960 | 5 | 0.6 | 2.2 | 60 | Dy50 | Dy40 |
| G30-2 | 960 | 5 | 1.2 | 3 | 120 | Dy50 | Dy40 |
| G35-1 | 960 | 8 | 0.6 | 3 | 60 | Dy65 | Dy50 |
| G35-2 | 960 | 8 | 1.2 | 4 | 120 | Dy65 | Dy50 |
| G40-1 | 960 | 12 | 0.6 | 4 | 60 | Dy80 | Dy65 |
| G40-2 | 960 | 12 | 1.2 | 5.5 | 120 | Dy80 | Dy65 |
| G50-1 | 960 | 20 | 0.6 | 5.5 | 60 | Dy100 | Dy80 |
| G50-2 | 960 | 20 | 1.2 | 7.5 | 120 | Dy100 | Dy80 |
| G60-1 | 960 | 30 | 0.6 | 11 | 60 | Dy125 | Dy100 |
| G60-2 | 960 | 30 | 1.2 | 15 | 120 | Dy125 | Dy100 |
| G70-1 | 720 | 45 | 0.6 | 11 | 60 | Dy150 | Dy125 |
| G70-2 | 720 | 45 | 1.2 | 18.5 | 120 | Dy150 | Dy125 |
| G85-1 | 720 | 65 | 0.6 | 15 | 60 | Dy150 | Dy150 |
| G105-1 | 500 | 100 | 0.6 | 22 | 60 | Dy200 | Dy200 |
| G135-1 | 400 | 150 | 0.6 | 37 | 60 | Dy200 | Dy250 |
Applications
Brewed, unbleached beer buds, hops, milk powder, malt extract, starch, tomato sauce, soy sauce, fermentation broth, mash, honey, chocolate mix, milk, cream, cheese and pulp

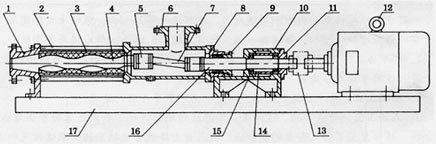

GF type stainless steel sanitary type single screw pump structure description
- out of the material cavity
- rod
- screw sets
- screw shaft
- universal joint assembly
- suction tube
- joint axis
- packing gland
- packing gland
- bearing seat
- bearing cover
- motor
- Coupling
- bushings
- bearings
- drive shaft
- base
